TPM-1000K

TPM Industrial-Mini Skid Steer Loader 1000K

Compact size ideal for tight spaces and maneuverability

Powerful hydraulic system for efficient operation

Wide range of compatible attachments for different applications.

Operator-friendly controls for ease of use.

Durable construction for long-lasting performance.

Low ground pressure to minimize damage to surfaces.

Easy maintenance access points for routine servicing.

Features: * Compact size ideal for tight spaces and maneuverability
* Powerful hydraulic system for efficient operation
* Wide range of compatible attachments for different applications.
* Operator-friendly controls for ease of use.
* Durable construction for long-lasting performance.
* Low ground pressure to minimize damage to surfaces.
* Easy maintenance access points for routine servicing.

Specs

Category	Item	Unit	Parameter
Performance	Gross vehicle weight	kg	1317
	Overall vehicle dimensions	mm	2691x1250x1548
	Maximum load capacity	kg	650
	Rated load capacity	kg	500
	Bucket capacity	m3	0.19
	Travel speed	km/h	0-4.5
	Rated pressure	MPa	19.5

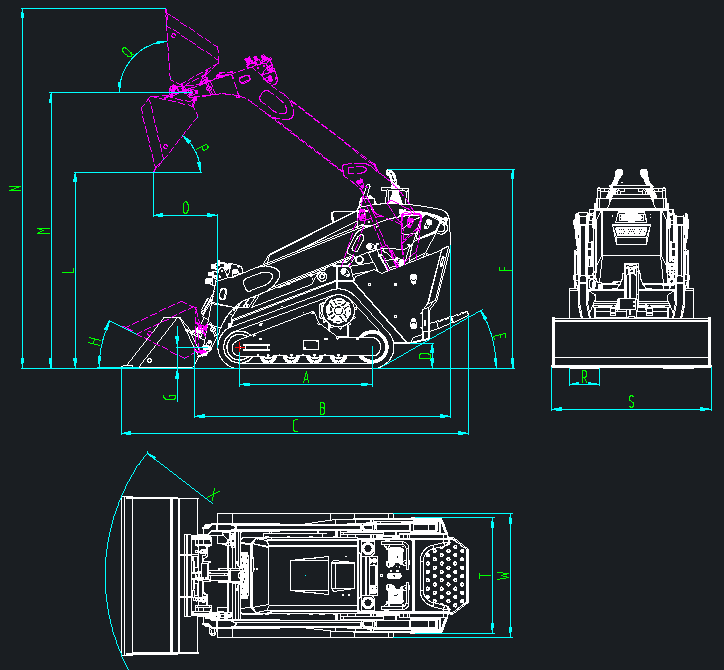

	Wheel base(A)	mm	1026
	Minimum vehicle length(Pedals folded&bucket removed)(B)	mm	1981
	Maximum vehicle length(C)	mm	2691
	Ground clearance (D)	mm	200
	Departure Angle (E)	Degree	29
	Vehicle Height (F)	mm	1548
	Bucket pin height from ground(G)	mm	169
	Bucket lifting angle (H)	degree	27
	Dumping height (L)	mm	1522
	Max.bucket pin height from ground (M)	mm	2140
	Max.bucket height from ground (N)	mm	2794
	Bucket tile angle (Q)	degree	86
	Bucket Dumping Angle (P)	degree	52
	Dumping reach (O)	mm	498
	Track width (R)	mm	230
	Bucket width (S)	mm	1250
	Vehicle width (W)	mm	960
	Frame width (T)	mm	900
	Turning radius(X)	mm	1556
Engine	Brand		Kubota
	Model		D1105
	Type		Diesel, 3-cylinder, water cooled
	Output power		17.1kw/2200rpm
	Fuel consumption	g/kw.h	257
	Displacement	CC	1226
Capacity	Fuel Tank	L	40
	Oil sump	L	3-5
	Hydraulic tank	L	30
Hydraulic system	Travel pump pressure	MPa	20
	Working pump pressure	MPa	19.5

Shipping Info: The mini skid steer loader is secured in a metal crate for transportation

Description: Experience unparalleled versatility and power with our Mini Skid Steer Loader. This compact yet robust loader is designed to tackle a wide range of tasks with ease. Whether you're landscaping, construction, or performing maintenance tasks, our Mini Skid Steer Loader offers exceptional performance and maneuverability in tight spaces. With its comfortable operator cabin and easy-to-use controls, you'll get the job done efficiently and comfortably every time.

Warranty: Manufacturer's warranty included
* 1-year warranty on parts
* Warranty does not cover normal wear and tear or damage from misuse
* Contact customer service for warranty claims and support
